Assalamualaikum & Salam 1 Malaysia..

Tuesday, 10 july 2012 (second day,week 3)

Around 9.00 am, my senses are at work. as usual I will continue to complete tasks assigned and connect back up the components in the circuit. for a completed assembling the components, PIC  board will be tested to ensure that each component can work properly.

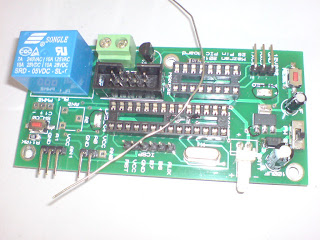

This is a pic board that was installed components .. On the page before, I do not give a clear picture of some of the equipment needed. so here I show the equipment needed  during the process of assembling the components in the pic board.          components to be installed on board          components to be installed on board

feet for solder iron, and wet sponge to clean the tip of solder iron

solder



sucker









In the afternoon, mr. Mazran give assignments to make sure that I and  several friends who understand AT command. Further activities will be resumed tomorrow.
